GRAD® mounting system

The Clickwood on Grad facade and terrace mounting system is renowned for its innovation and ease of use. Architects, contractors, and end users alike often consider it the ideal solution. The system offers concealed mounting, ensuring a sleek and modern appearance. In addition, the factory-determined spacing and mounting of the clips guarantees a perfectly straight line, virtually eliminating the risk of installation errors.

Facade and terrace

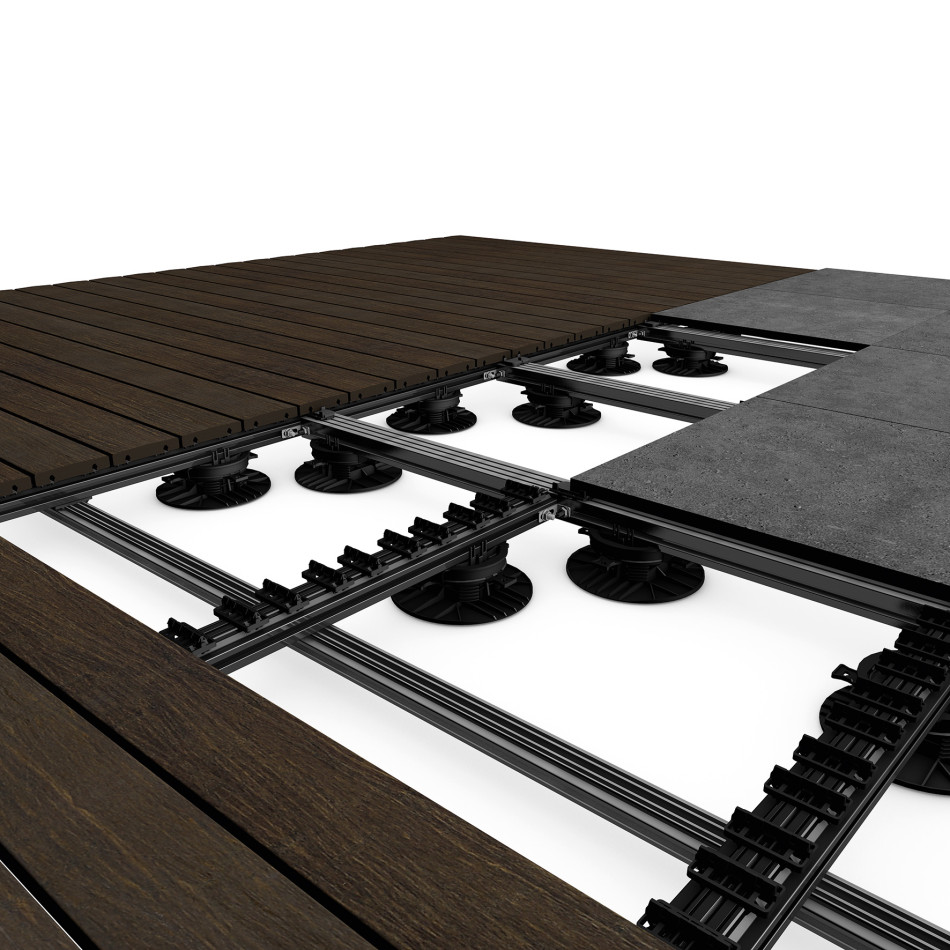

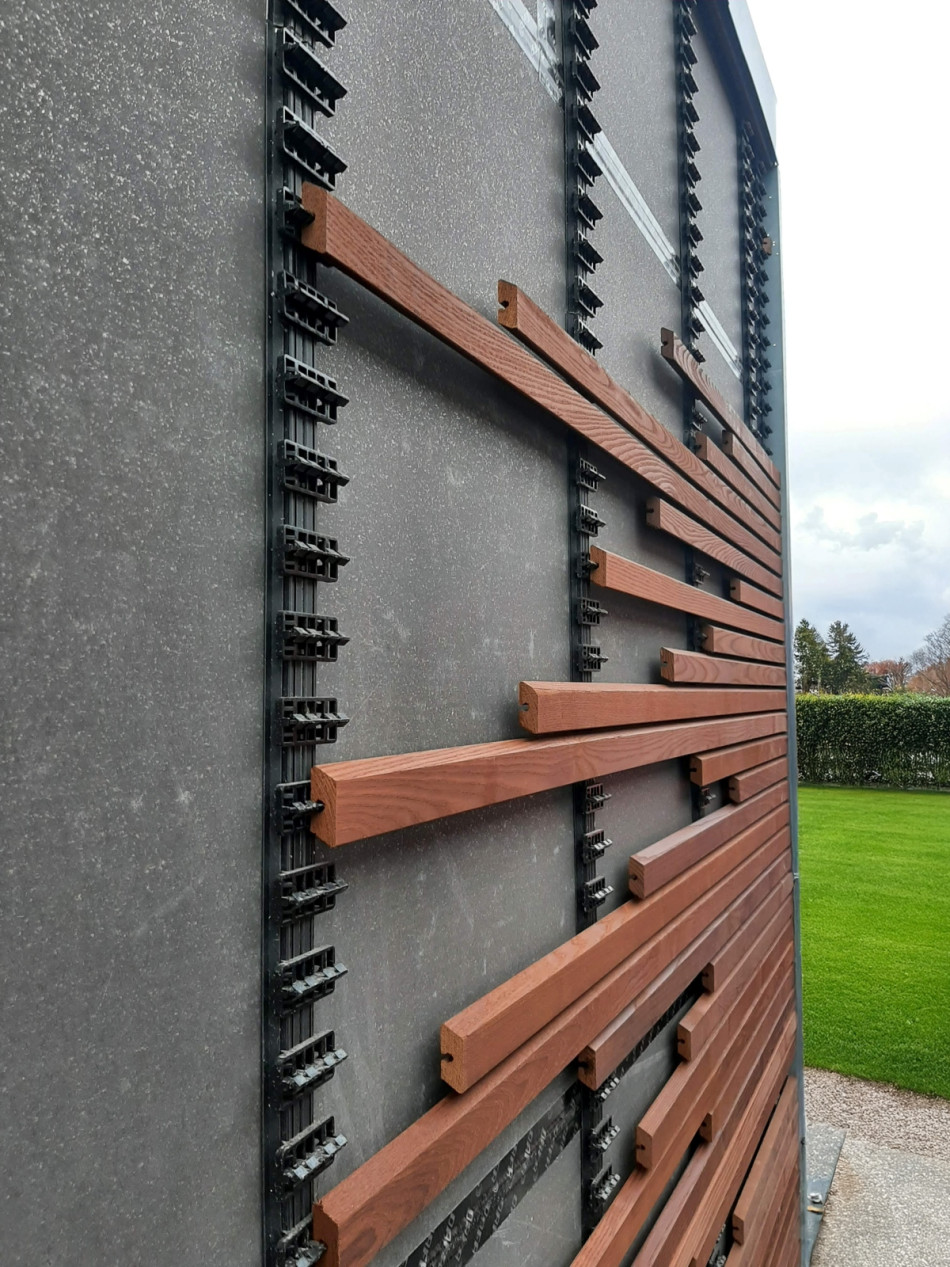

The Clickwood on Grad mounting system is suitable for both terraces and facades.

The aluminum alloy of the rails provides the ultimate load-bearing capacity for both facades and terraces. This ensures that the wooden planks remain perfectly straight. Clickwood on GRAD® offers a 20-year warranty on the aluminum rails.

In addition to the rails, the clips are also of very high quality. They provide reliable support during the expansion, contraction, and deformation of the planks, without damaging the clips themselves.

Another advantage of the clips is that they can be completely dismantled using the dismantling keys supplied, which makes the process easy. The keys are placed between the clip and the rail, after which the clip can be clicked loose using a lever action.

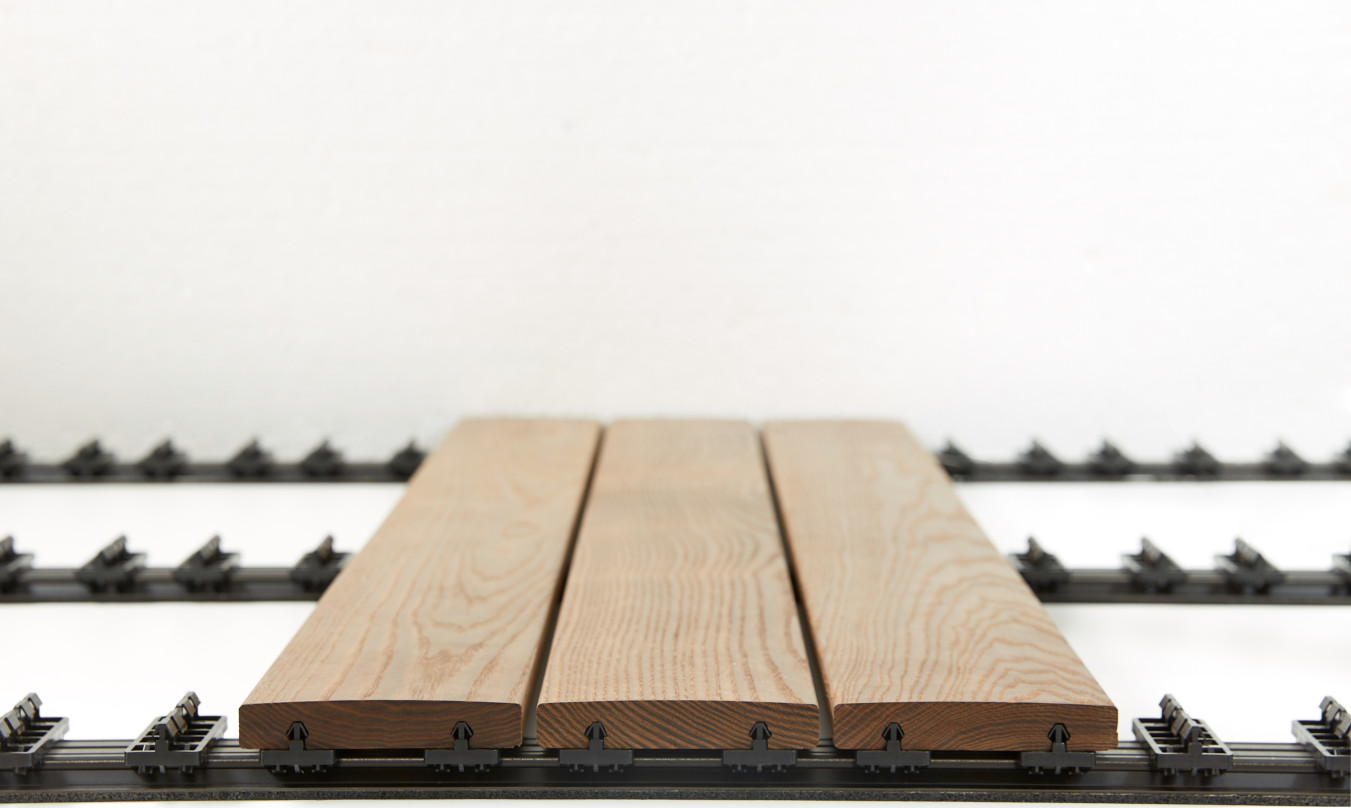

This process does not damage the clip, allowing it to be easily replaced on the rail. It is also impossible to make mistakes when attaching the clips to the rails yourself. The clip has two protrusions on the underside that fit perfectly into the two holes on the rail, ensuring that the clip is attached in the correct position.
